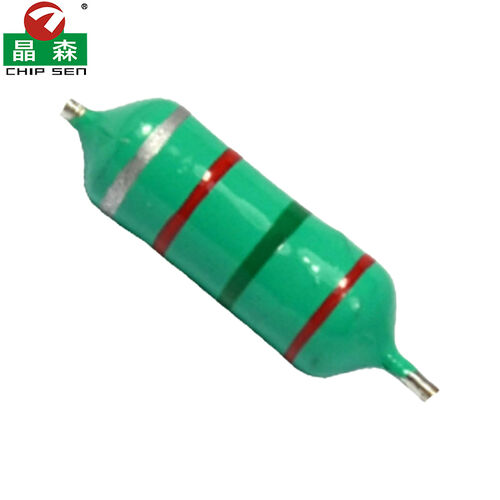

How to Minimize Color Ring Inductor Heat and Protect Your Circuit Performance

Using components engineered with high thermal conductivity is the most effective foundational step. Selecting low-resistance materials and optimizing layout placement reduces thermal impedance at the source, enabling faster heat dissipation across the circuit board.

Active ventilation replaces trapped hot air around the inductor with cool ambient air through forced convection.

• Effectiveness: Boosts heat dissipation efficiency by up to 30%.

• Best Applications: Larger systems where space allows, such as computing power supplies, automotive electronics, variable frequency drives (VFDs), and industrial power tools.

Applying high-emissivity thermal coatings directly to the inductor coil surface absorbs thermal energy and radiates it into the surrounding environment.

• Added Advantages: Enhances surface self-cleaning, electrical insulation, corrosion resistance, and moisture protection.

Because liquids have a significantly higher thermal conductivity and heat capacity than air, liquid cooling provides superior thermal transfer via direct or indirect coolant circulation.

• Considerations: Highly effective for high-power density systems, though it involves higher costs, added weight, and maintenance requirements.

Applying thermally conductive adhesives or thermal grease onto the color ring inductor bridges microscopic air gaps to transfer heat efficiently to an aluminum or copper heatsink.

• Dual Benefit: Efficiently channels heat out of the enclosure while offering extra protection against dust, humidity, and environmental corrosion.
