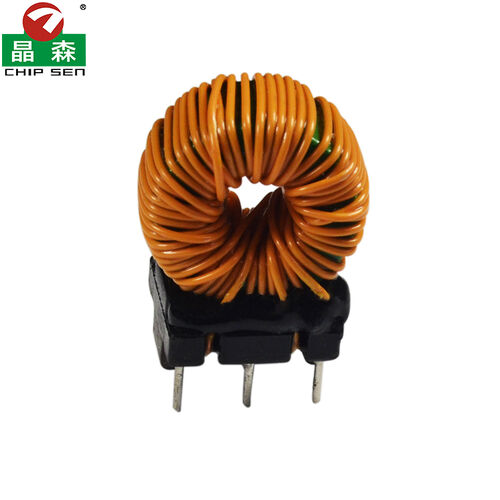

How to Prevent Common Mode Choke Heat from Damaging Your Circuits: 5 Proven Cooling Strategies

Common mode chokes play a vital role in EMI suppression, but high operational temperatures can compromise component performance and circuit reliability. Every electronic component has thermal impedance—a measure of its ability to transfer heat. Selecting materials with lower thermal resistance is the foundational step in thermal management.

Here are 5 industry-proven methods to dissipate coil heat and protect your power circuits:

Using materials with low thermal resistance is the most fundamental and efficient way to reduce heat accumulation at the source. Choosing chokes made with high-conductivity core materials and premium insulation ensures efficient heat transfer out of the winding.

Forced convection using cooling fans replaces hot surrounding air with cool ambient air.

• Benefits: Increases thermal dissipation efficiency by up to 30%.
• Best Used For: Industrial drives, power inverters, automotive electronics, and large-scale computing systems where active cooling space and power are readily available.

Applying specialized heat-dissipating coatings directly to the choke surface allows heat to radiate efficiently into the surrounding space. Beyond thermal reduction, these coatings add valuable protective benefits:

• Self-cleaning properties
• Enhanced electrical insulation
• Anti-corrosion and moisture-proof barriers

Because liquids possess significantly higher thermal conductivity and specific heat capacity than air, liquid cooling provides superior heat extraction—either through direct contact or indirect cold-plate systems.

• Trade-offs: Highly effective for ultra-high-power density applications, though it incurs higher material costs, increased weight, and complex system maintenance.

Thermally conductive adhesives and thermal pastes bridge the micro-gaps between the common mode choke and a dedicated copper or aluminum heatsink.

• How It Works: The thermal compound transfers coil heat directly to the heatsink, which radiates the energy out of the enclosure.
• Bonus Protection: High-grade thermal paste doubles as a protective seal against moisture, dust, and chemical corrosion.
